Endevor- Inventory and Stages

Everything Endevor controls lives in its inventory - a structured database (the Master Control Files) that knows every element, every version, and every stage. Understanding the inventory structure is the key to using Endevor: every action you ever run names an element by its full inventory address.

The address has five parts, always in this order: environment, system, subsystem, element name + type, stage. Learn this order once and every Endevor panel and SCL statement will make sense.

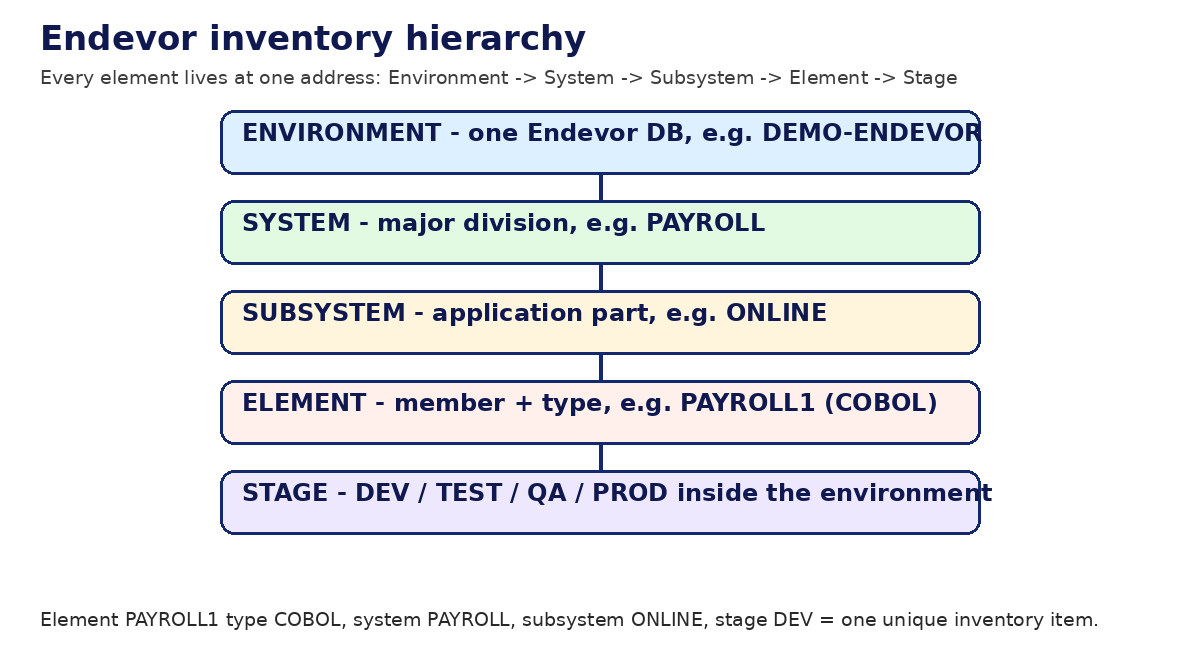

The five levels of the inventory

• Environment - one Endevor database. A shop may have DEMO (training), DEVLP (development), and PROD (production), or a single environment with many stages. Example: DEMO.
• System - a major application division inside the environment. Example: PAYROLL, ACCTS (accounts), HR.
• Subsystem - a functional part of a system. Example: ONLINE (CICS programs) and BATCH (batch programs) inside PAYROLL.
• Element - one member under control, identified by name plus type. Example: element PAYROLL1 of type COBOL.
• Stage - the lifecycle step the element copy sits in: D (development), T (test), Q (quality assurance), P (production).

Element types - the most common ones

• COBOL / COB - COBOL source programs. COPY / CPY - copybooks included by programs.
• ASM - Assembler source. PLI - PL/I source. C - C language source.
• JCL - job control language members. PROC - cataloged procedures.
• BMS - CICS BMS map source. LINK - linkage editor control cards.
• PROCESS - Endevor processor source itself (processors are stored as elements too).
• The type decides which processor group builds the element - type COBOL gets the COBOL compile processor.

A real example map

Here is a typical inventory map for a payroll application. The same element PAYROLL1 exists as separate stage copies that travel upward:

Entry stage and stage IDs

• Every environment has an entry stage - usually the DEV stage - where new elements are first added. You cannot ADD directly into PROD.
• Stage IDs are site-defined: letters (D, T, Q, P) or numbers (1, 2, 3) are both common. Your administrator's stage map is the authority.
• Stages can be mappable: Endevor knows that stage D maps up to stage T, T to Q, Q to P, so a MOVE knows its default target.
• An element can exist in several stages at once at different levels - that is normal during a release cycle.

Stage lifecycle with a worked example

1. Developer adds PAYROLL1 (COBOL) to stage D, level 01. Signs it out, edits, updates to level 02, generates it.
2. Unit test passes. Developer MOVEs PAYROLL1 from stage D to stage T. Endevor copies the source and regenerates it in T.
3. Integration testing in T passes. A package carries PAYROLL1 from T to Q after approvals.
4. QA signs off. The package executes the move from Q to P. Production now runs the new level.
5. Next change starts again at D: the developer retrieves, edits, updates to level 03 - the cycle repeats.

Base and delta libraries - how history is stored

• Endevor keeps the full current source of each element in a base library (a PDS).
• Older levels are stored as deltas - only the differences from the current level - in delta libraries, saving disk space.
• When you retrieve an old level, Endevor rebuilds it by applying deltas in reverse. This is invisible to you.
• Retention rules decide how many levels are kept; very old levels may be aged off to archive.
